Extreme Crane Lube - Apply Faster Than Ever

Extreme Crane Lube - Boom Lubricant of Choice!

Features

Telescopic Crane Boom Lube

Simple Application Process

Faster Application Times

Less Setup and Cleanup Time

No Expensive Spray Equipment Needed

No Use of Rollers or Brushes to Apply

Spray-able In Sub Zero Temperatures & High Heat, Wet or Dry Conditions.

All Season Performance

Extremely Water Proof

Creates a Rust Proof Coating

Lubricates Extremely Well

Won't Dry Out

Long Lasting

View Technical Data

View Safety Data

Why It Works So Well...

Use Extreme Crane Lube to achieve faster application times on telescopic booms and equipment with less mess, less clean up, and without the use of expensive equipment. Grab a sprayer or aerosol can & go! Users notice 5-7 times the Labor Savings compared to traditional methods. For instance: Rolling grease on a boom.

Extreme Crane Lube can easily be applied by spraying on 1-2 coats that won't run or drip, even when heavily applied. Unlike other products that need to be rolled or brushed on when it starts to get cold, Extreme Crane Lube can be applied in both sub zero temperatures and hot dry or wet conditions. All Season Performance.

A special blend of extreme pressure additives, R/O inhibitors, and PTFE, gives Extreme Crane Lube the ability to outperform other products. This robust boom lube is for telescopic cranes, open gears, chains, sprockets, pins, aerial lifts, telehandlers, outriggers, slide-outs, fork lifts, construction equipment, AG equipment and more!

Extreme Crane Lube is approved & preferred by users who own, maintain, and operate equipment made by Manitowoc, Grove, Liebherr, Tadano, Terex, XCMG, SANY, Kobelco, GEHL, Manitou, Manitex, National, Bronto Skylifts and many others.

Meets and exceeds OEM specifications for proper boom lubrication.

Overall, Extreme Crane Lube is the ultimate lubricant for heavy machinery, providing superior protection, lubrication, and performance in even the most demanding conditions. Whether you're operating a crane, tele-handler, or other heavy machinery, you can trust Extreme Crane Lube to keep your equipment running smoothly and efficiently.

Extreme Crane Lube - Recommended Boom Lubricant 2021

AVG. SPRAY TIME -

300 TON Crane (40 minutes)
40 TON Crane ( 5 minutes or less)
Applies as a liquid that wont run or drip, and quickly sets up into a semi solid lubricant.

AVG. COVERAGE : Results vary depending on size of equipment and how many sections there are.

250 - 350 + TON Crane Avg. Use: 2.5-Gallons to 3-Gallons.
150 - 200 TON Crane Avg. Use: 1.5 to 2 Gallons Depending on how many telescopic sections.
60 - 100 TON Crane Avg. Use: 1 to 1.5 Gallons
20 - 50 TON Crane Avg. 1/2 gal to 1 Gallon.
Anything smaller, 1/4 to 1/2 - Gallon.

On Boom Trucks & Telehandlers, 100ft of boom will take 1 or 2 Aerosol Cans.

Bulk spray is 3 to 5 times faster to apply than Aerosol Cans.

The use of a Wand allows you to reach further away wear sections when applying from the ground or when using a mobile lift to apply.

COMPARISONS - EXTREME CRANE LUBE vs BOOM Grease

Extreme Crane Lube is a preferred extreme pressure boom lubricant of choice. It outlasts, and outperforms other grease used for lubricating telescopic booms, especially those that use Moly Powder, (molybdenum). Extreme Crane Lube helps wear pads last longer, creates less stress on hydraulic systems, simplifies scheduled maintenance, and keeps equipment running more efficiently.
- "Service Managers and Operators Love Using This System!" -

Easier Application
Faster Applications times
Less Setup & Cleanup Time - No hoses to drag out our roll back up
No using rollers or brushes to apply
All Season Performance - Hot or Cold
Lasts 2 to 3 times longer in harsh weather and conditions - Dry or Wet
Doesn’t Freeze and can be applied in sub-zero temperatures
Doesn’t Scrape Off, Run, or Drip
Extremely Water Proof
Is NOT made with Moly Powder (molybdenum) which causes your lubricant to dry out, and “Cake Up.” This can damage components and cause more time and costly repairs.
No expensive equipment needed to spray the product - Just a simple pump sprayer
Self sufficient application. No additional power supply needed to lube a boom. For example; Gasoline/Diesel needed for a Generator that runs a Compressor, that powers a Spray Gun... That's too much work!
With Extreme Crane Lube, no setup time or other equipment needed. Grab your pump sprayer and GO!

Sprayers - Wands - Extensions - Nozzles - Parts

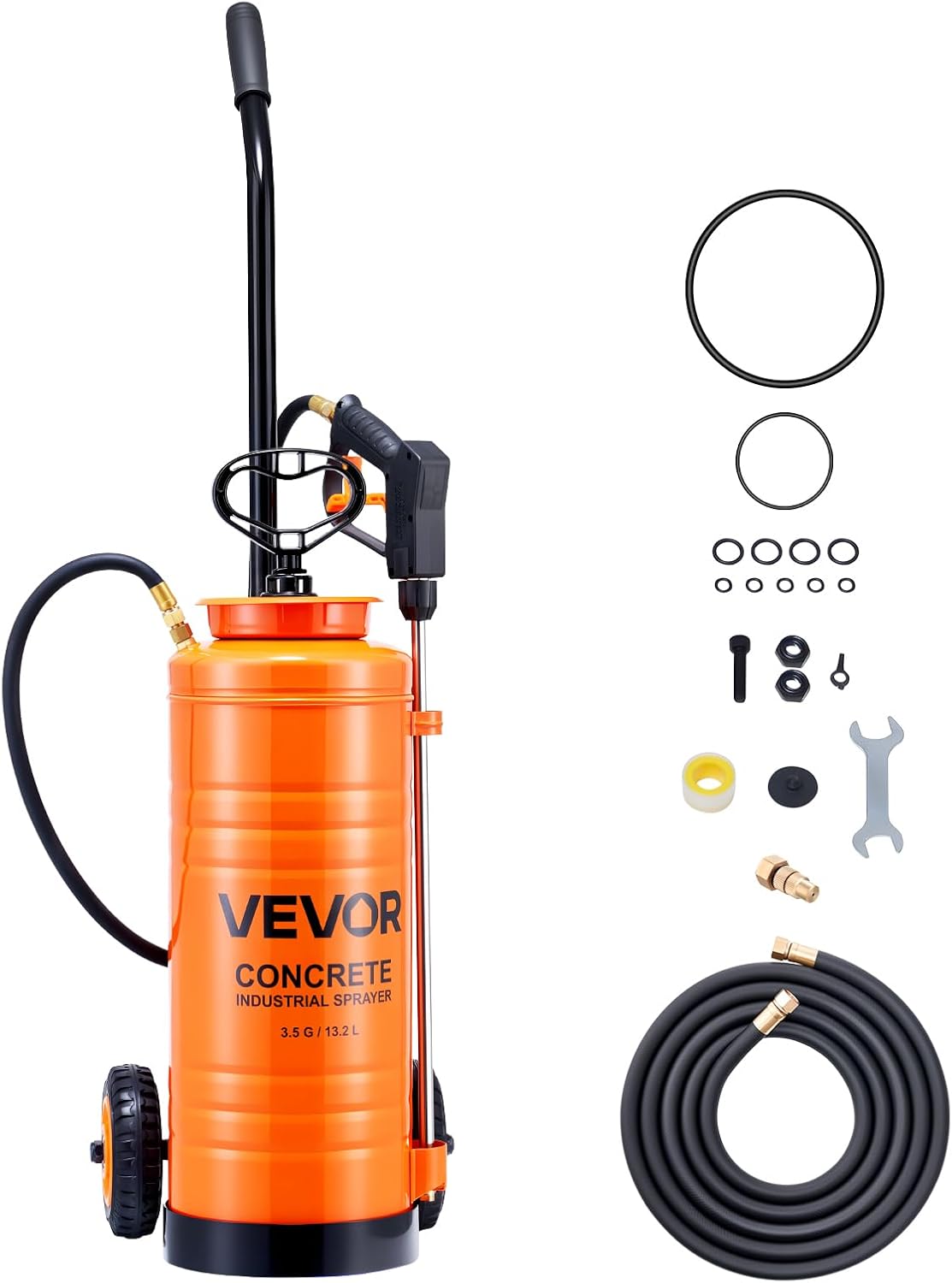

VEVOR 3.5 Gallon Sprayer with Wheel Cart

Premium Materials for Durability: Made with a tri-poxy stainless steel tank, 2 brass nozzles (Adjustable Cone & Fan) and fluorine rubber seals. This metal sprayer offers excellent rust, corrosion, and dent resistance, ensuring long-term, stable operation to meet industrial-grade demands.

Ergonomic Grip & Precision Wand: The stainless steel pump sprayer features a pistol grip design that reduces arm fatigue, while the 24-inch brass spray wand ensures precise spraying, enhancing comfort and spraying efficiency.

Extended Hose for Wider Reach: Equipped with a 48-inch hose and a bonus 120-inch reinforced hose, extending the spraying radius, eliminating the need to frequently move the unit, thus increasing work efficiency.

Note: Please clean parts immediately after use to maintain performance. Do not let Crane Lube setup inside the nozzles or spray lines. Purge lines after use.

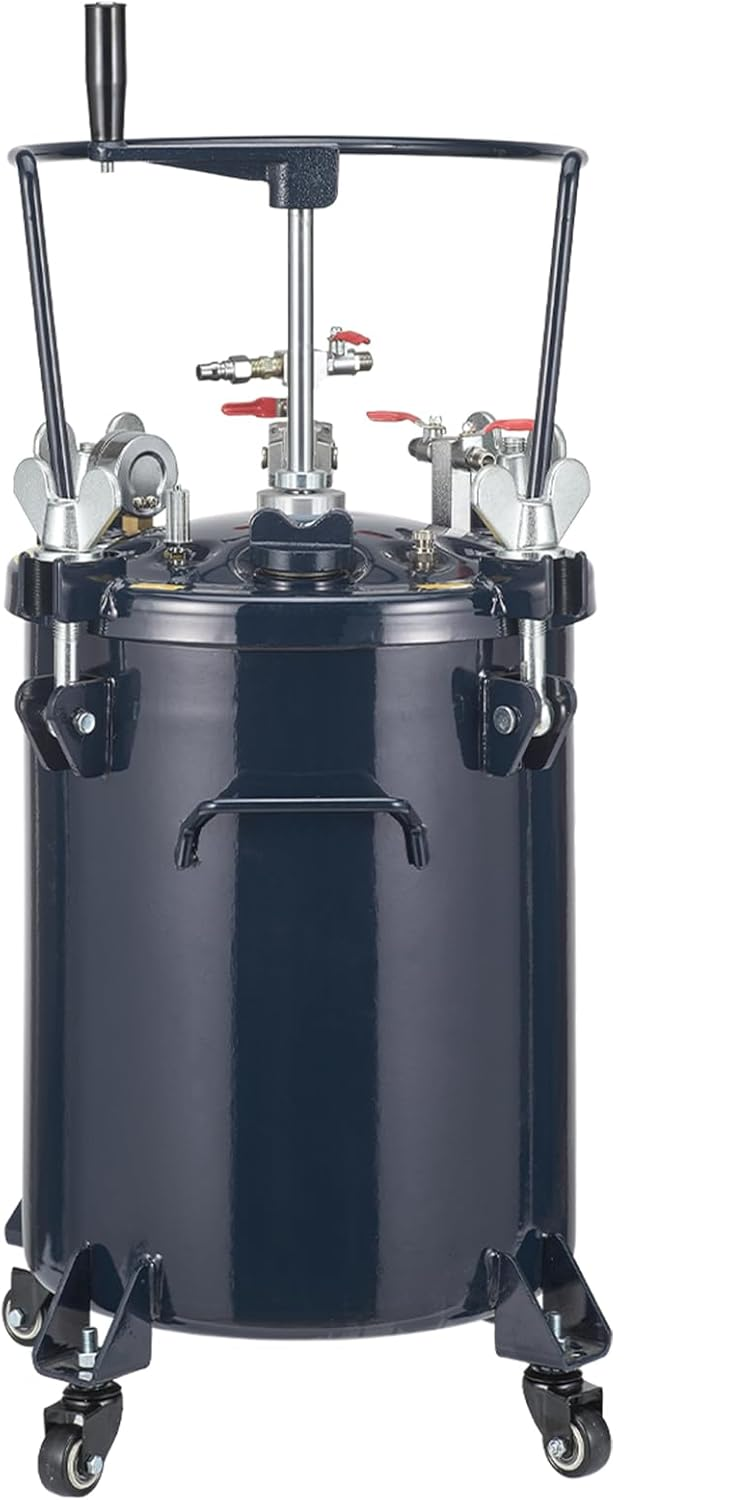

VEVOR Pressure Pot Tank, 8gal Compressed Air Pressure Pot with Manual Mixing Agitator

This 8 gallon Heavy Duty pressure pot allows you to spray 5 gallons of Crane Lube easily by pressurizing the tank with 70 psi, eliminating the need to pump manually like traditional pump sprayers.

Connect any length of solvent proof hose to the outflow port and connect your wands to the end of the hose for the ultimate setup when spraying Crane Lube. Set pressure outflow as you see fit.

Customize the pressure pot system as desired. Some variations add quick connect couplings to the hoses and wands to quickly detach the wand from hoses for easy cleaning.

With a 20-30 ft hose added to this, you can easily spray a 40 -60 ft radius without moving the pressure pot.

Casters on the bottom allow you to move the pressure pot to any location without having to manually carry the tank.

An agitating mixing arm with blade allows you to easily stir product before use if left inside the pressure pot. NOTE: Some additional adapters are required to attach hoses and wands.

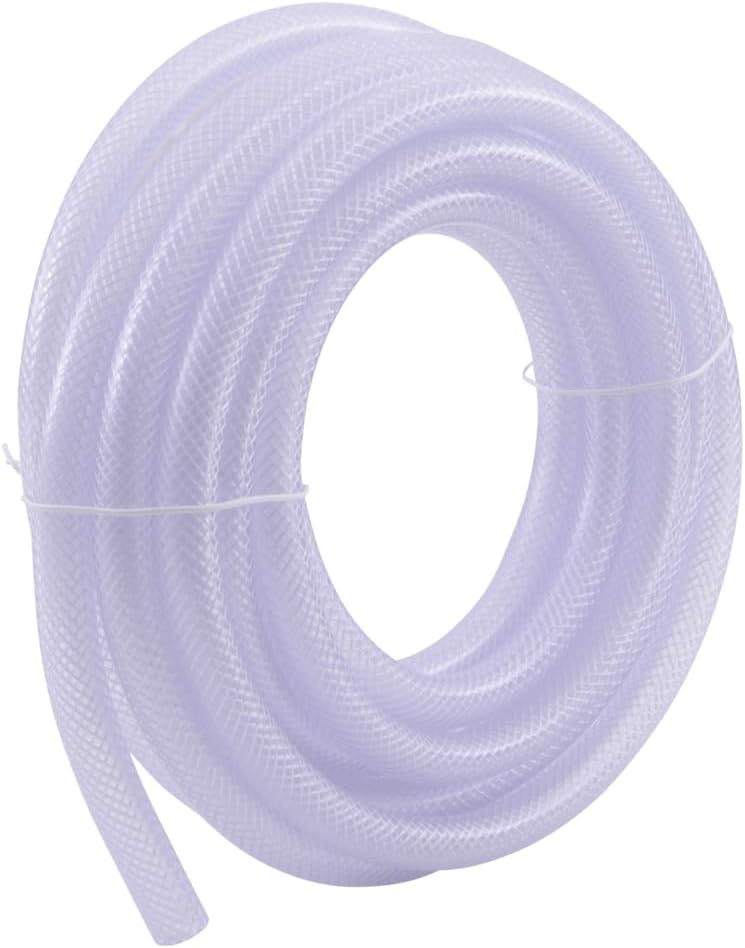

EZ-FLO 3/8 Inch ID (5/8 Inch OD) PVC Clear Reinforced Braided Vinyl Tubing, 20 Foot Length

EZ-FLO Reinforced Braided Clear Vinyl Tubing can be used in a wide variety of settings involving lubricants, chemicals, gases, and liquids.

20 ft length. Additional length hoses and parts can be found online.

Solvent proof plastic tubing protects against acids, alkaline, and a variety of chemicals, gases, and liquids.

Flexible and versatile.

Use with the Brass Hose Barb Fitting 3/8" Barb x 1/4" NPT Male Adapter.

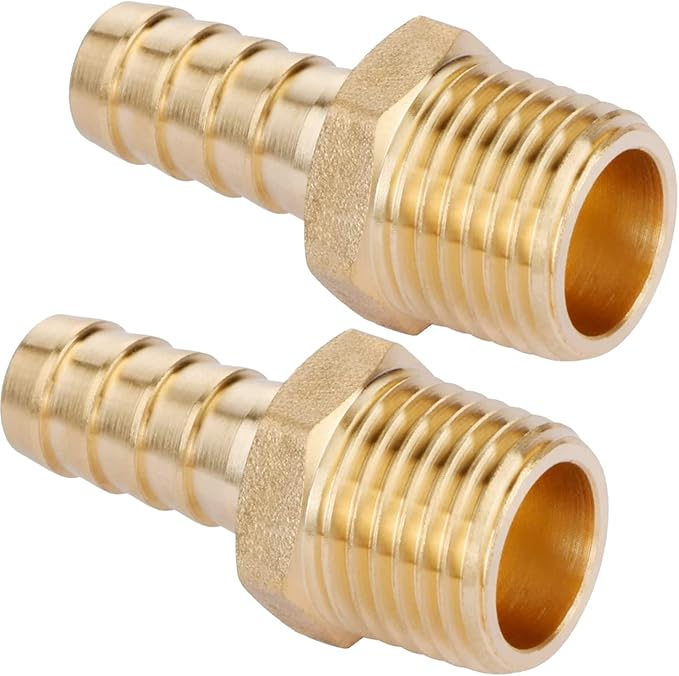

Brass Hose Barb Fitting 3/8" Barb x 1/4" NPT Male Adapter Barbed

Use these or similar barbed fittings to easily attach to your hoses and sprayer wands. You can also use Quick Coupling adapters if wanting to add a quick connect setup.

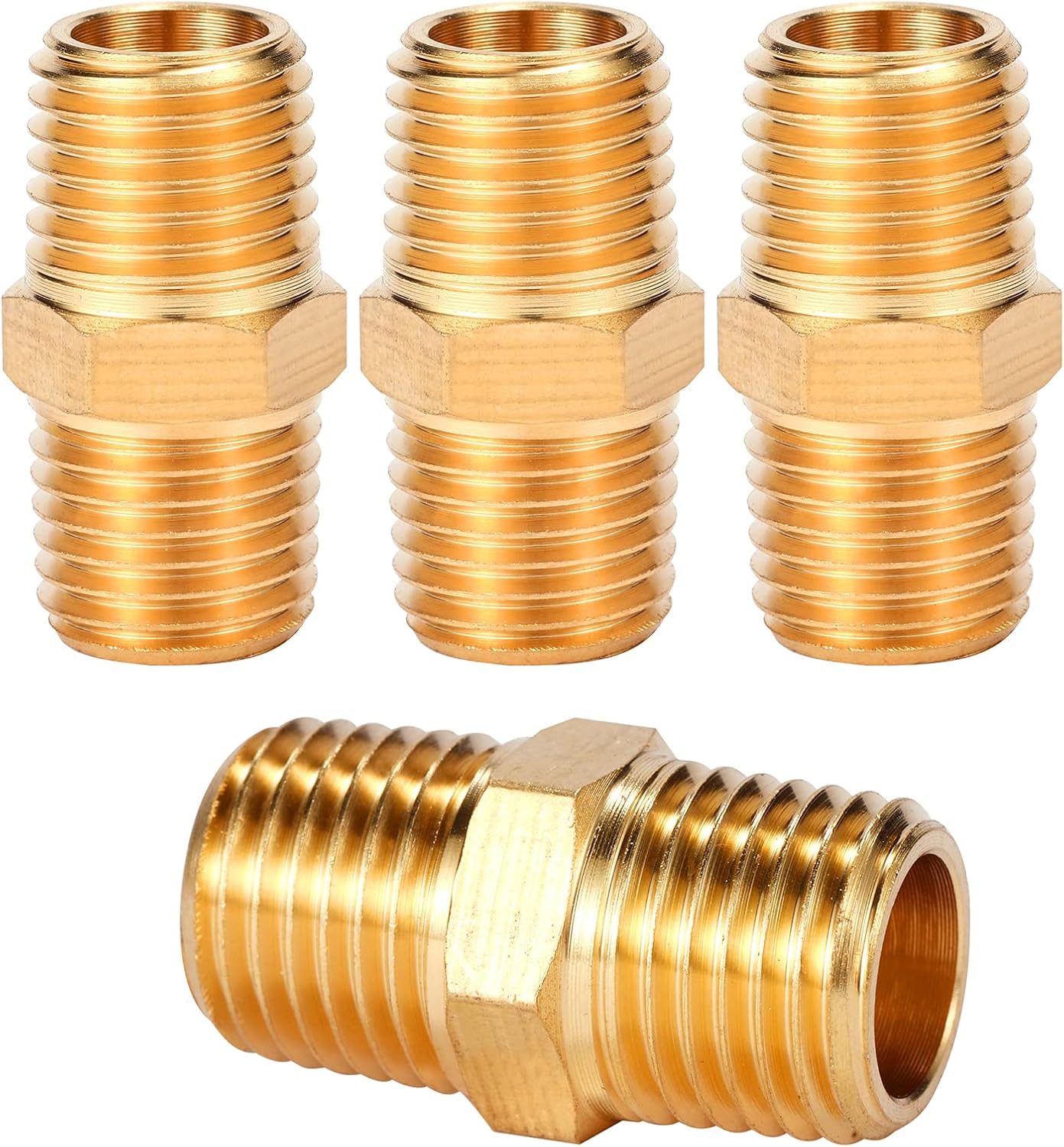

4 pcs Solid Brass Pipe Adapter, Hex Nipple, 1/4" x 1/4" NPT Male Pipe Adapter

Use these pipe adapters to easily connect other sprayer components and wand handles to the VEVOR hoses and other parts with 1/4” fittings.

Use for extending hoses or for replacement parts. Screws directly into the bottom of the TECREDDY handle or the VANPET 44” Sprayer Wand Extension Kit.

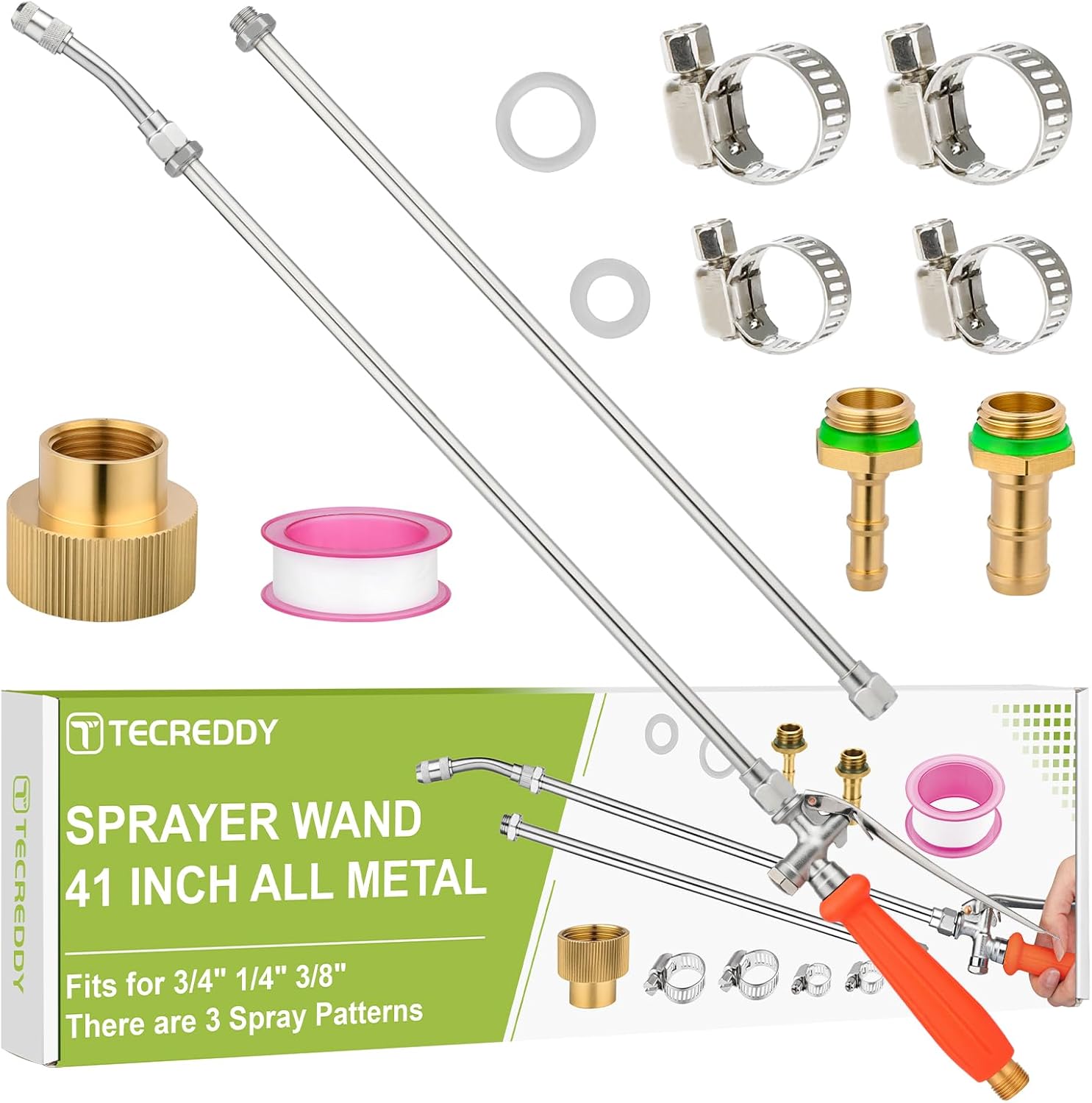

TECREDDY 41”Sprayer Wand Extension Kit

This versatile, heavy duty wand kit includes high-quality, rust-resistant brass fittings that easily adapt to fit 1/4-inch, 3/8-inch spray hose ends, and standard 3/4-inch hoses.

Excellent choice for replacement wands or to extend your VEVOR Sprayer Wand kit. Compatible Fittings attach directly to the VEVOR Sprayer Wands.

Reach higher external boom sections or internal boom sections that are hard to reach when spraying Extreme Crane Lube.

Note: Purchase Additional Wand Kits to make an even longer wand, eliminating ladders and giving you the option to spray directly from the ground with ease.

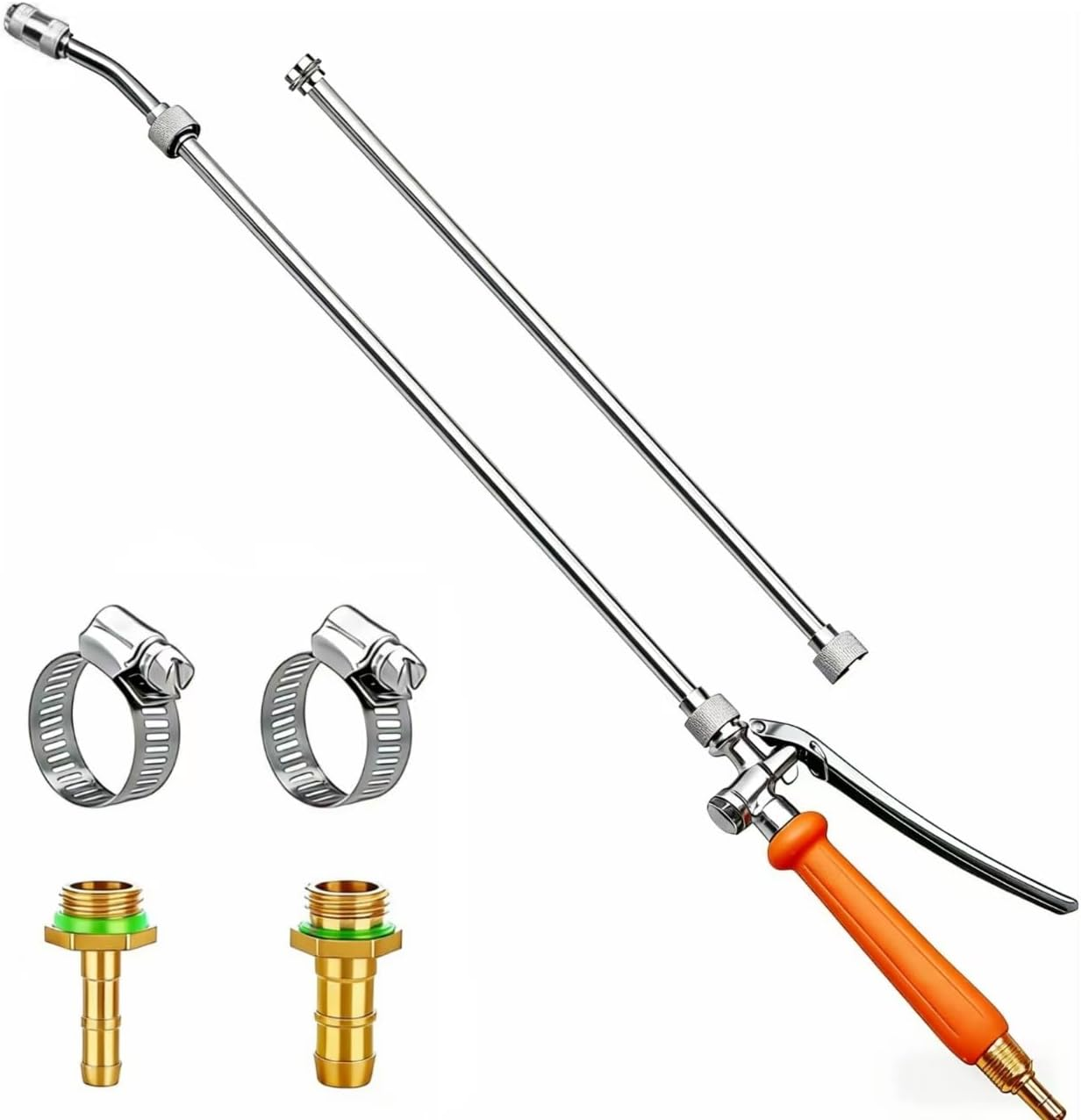

VANPET 44” Sprayer Wand Extension Kit

This versatile, light weight spray wand kit is an excellent and low cost choice for anyone looking to make a longer wand attachment. Comes with an adjustable cone nozzle that sprays an excellent 12-14” Circular spray pattern or can be turned to spray a heavy stream.

Use 2 kits or more to go from 44” to 84” long. Light weight and easier to hold with one hand while spraying.

NOTE: This does not have universal thread sizes on the wand extension rods. Doesn’t fit ¼ NPT Parts. Only use if combing the same style kits. It does have a ¼ NPT connection on the bottom of the handle to support quick couplers and other hose adapters.

PROS: The lowest cost wand extension kit available. Light Weight.

"RIDGE WASHER"

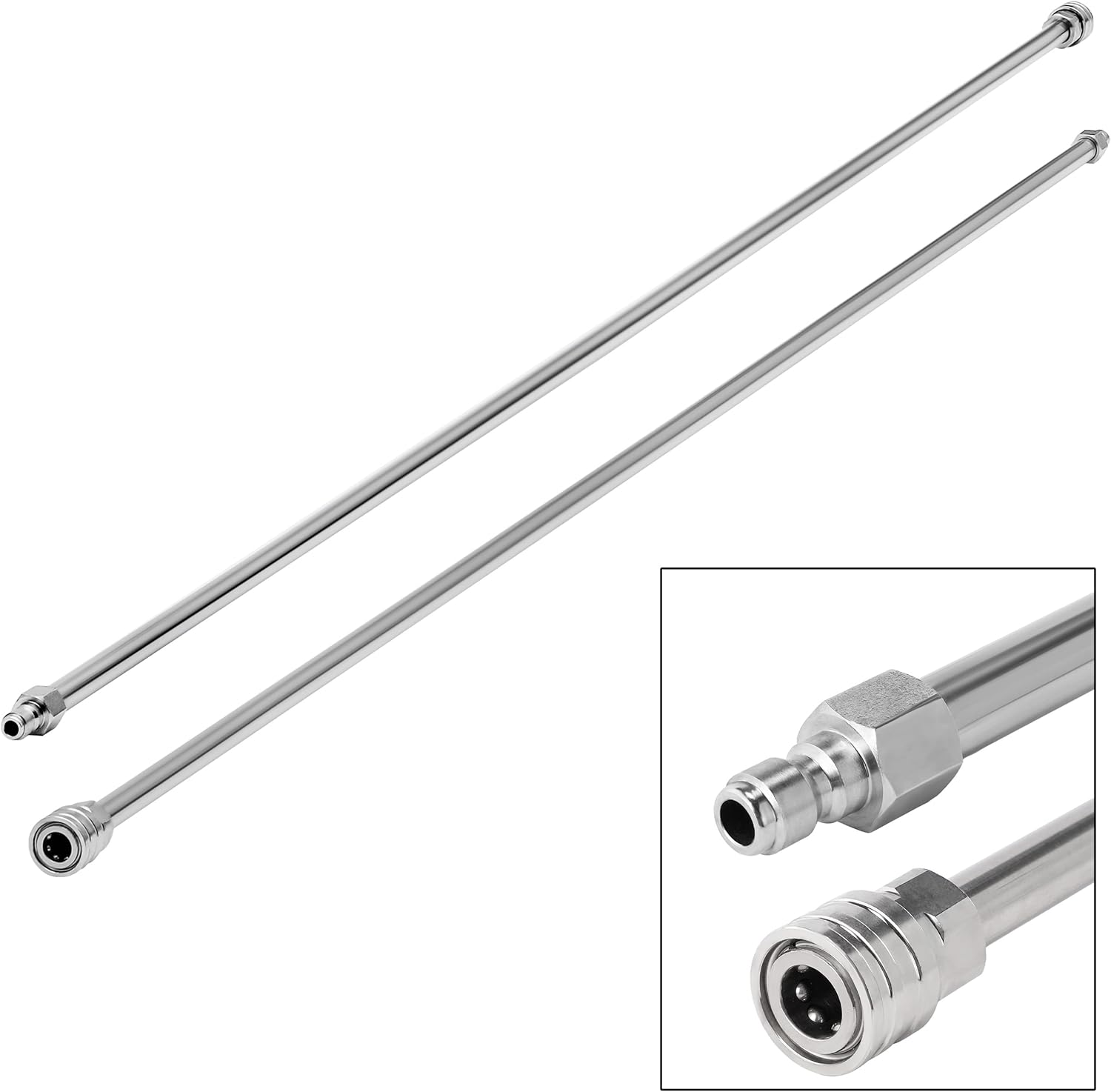

Wand Extension, 120 Inch Extender Wand, 1/4”
Quick Connect - 2 60" Rods

PACKAGE INCLUDES: 2 pcs, 60 inch stainless steel extension wands. 10 ft of length. Heavy duty and durable.

NOTE: These wands can get heavy for one handed operation. If looking for a Light Weight option, buy 2 or more of the VANPET 44” Wand extension kits, for a setup that weighs 5-10 lbs depending on length.

PROS: Reach all the way to the top of larger cranes boom sections from the ground. Don't use a ladder or scissor lift when you can add these wand extensions to your sprayer kit. Excellent for reaching internal boom wear sections with ease.

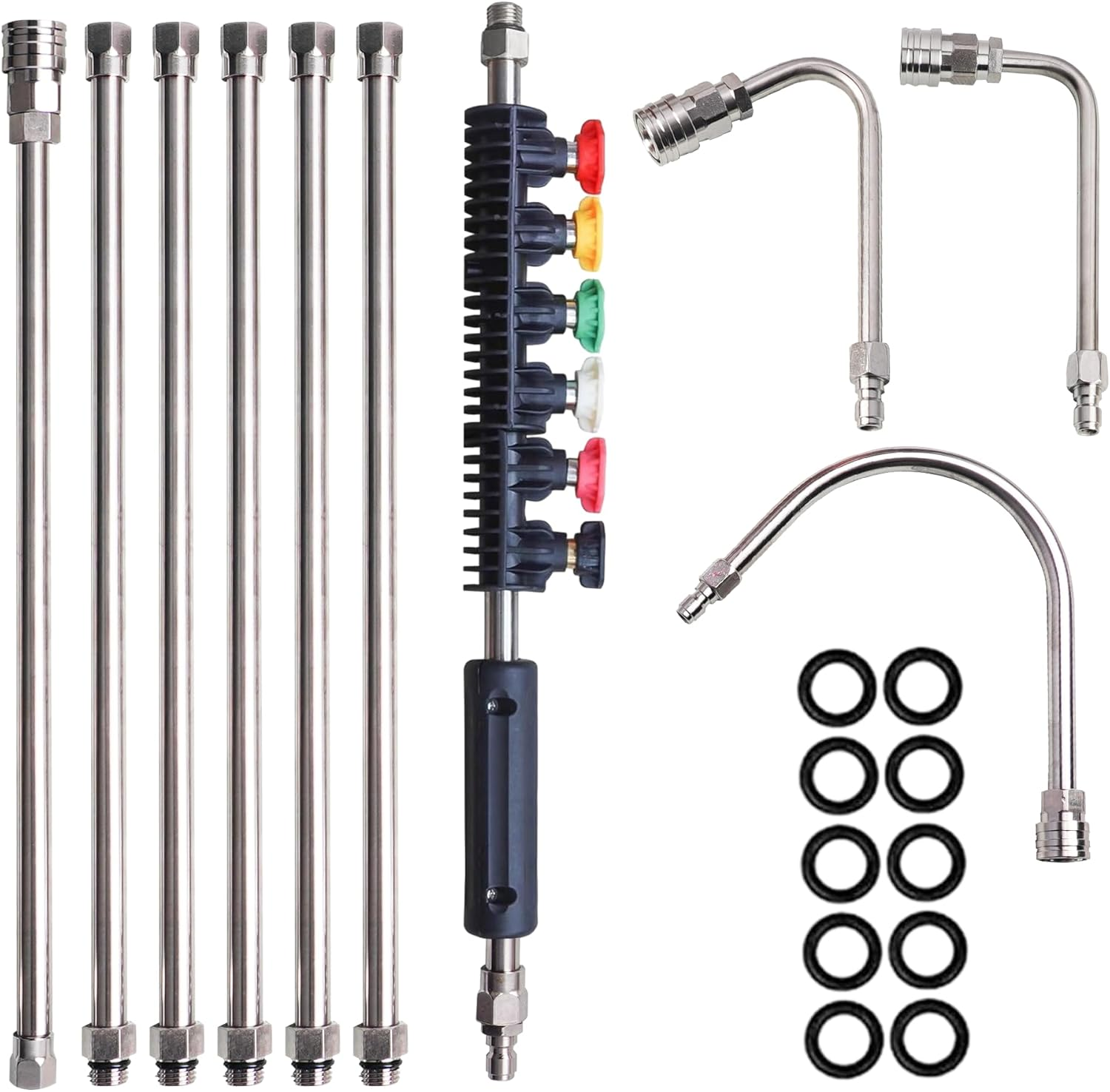

Xiny Tool Extension Wand, 10 Pack

Package Includes: 7 pack 15" high quality extension wands, 30°, 90° and U shape curved wands, 6 different sizes nozzle tips and 10 replacement rings.

Excellent choice for spraying the top section of larger booms from the ground.

You can find J-hooks and 90° extension pieces directly online if only looking for 1 specific part.

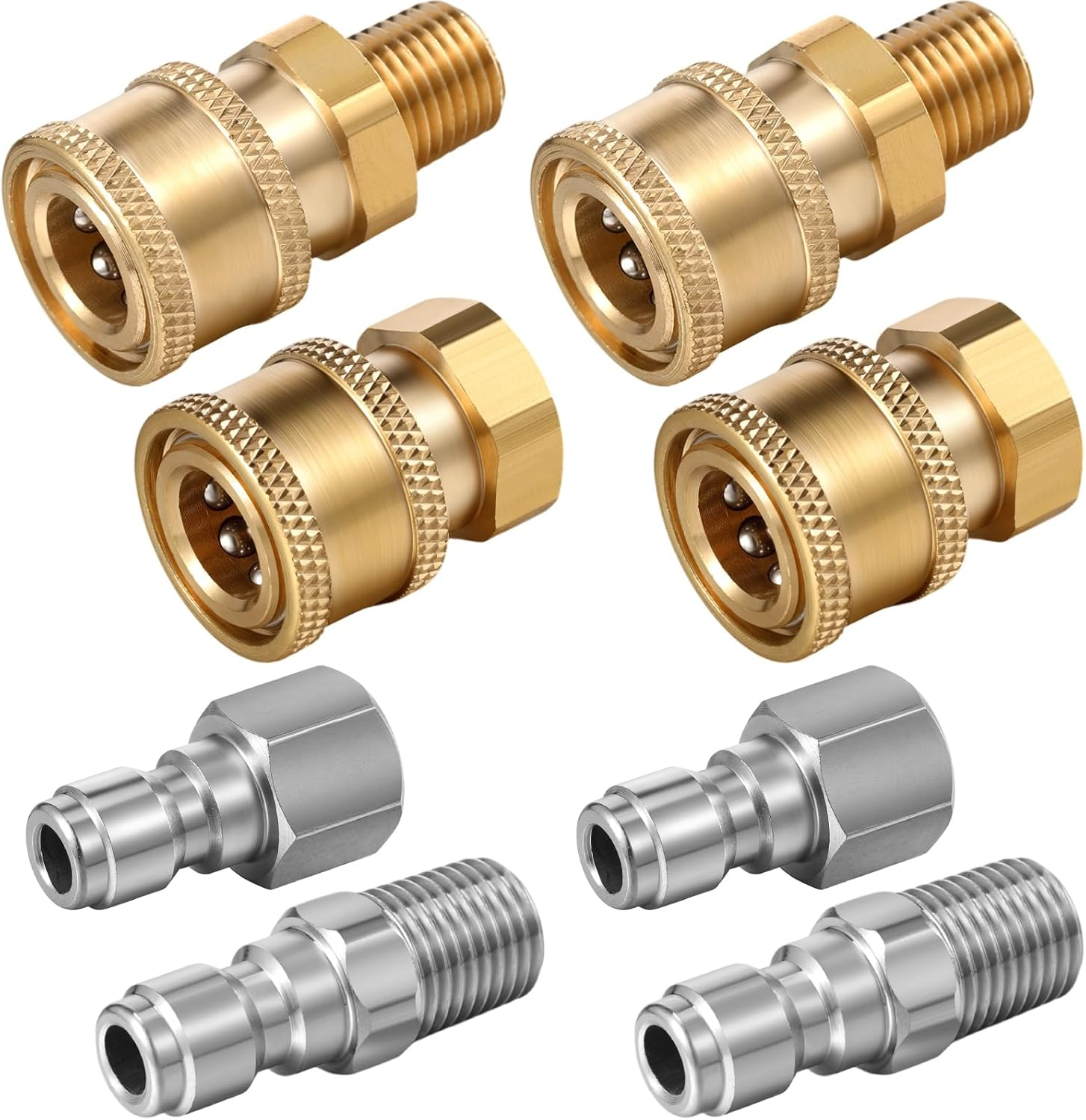

Shimeyao 4 Sets NPT 1/4 Inch Coupler Quick Connect Plug Male Female 1/4 Quick Connect Fittings

Package Includes: 4 sets of NPT 1/4 Inch Coupler Quick Connect Plugs, Male and Female fittings.

Use these Quick Connect Couplers to attach directly to your sprayer or wand base, or directly to sprayer nozzles for quick connect options. Quickly go from fan nozzle to adjustable cone nozzle, or use to make customized options that work best for your sprayer kits.

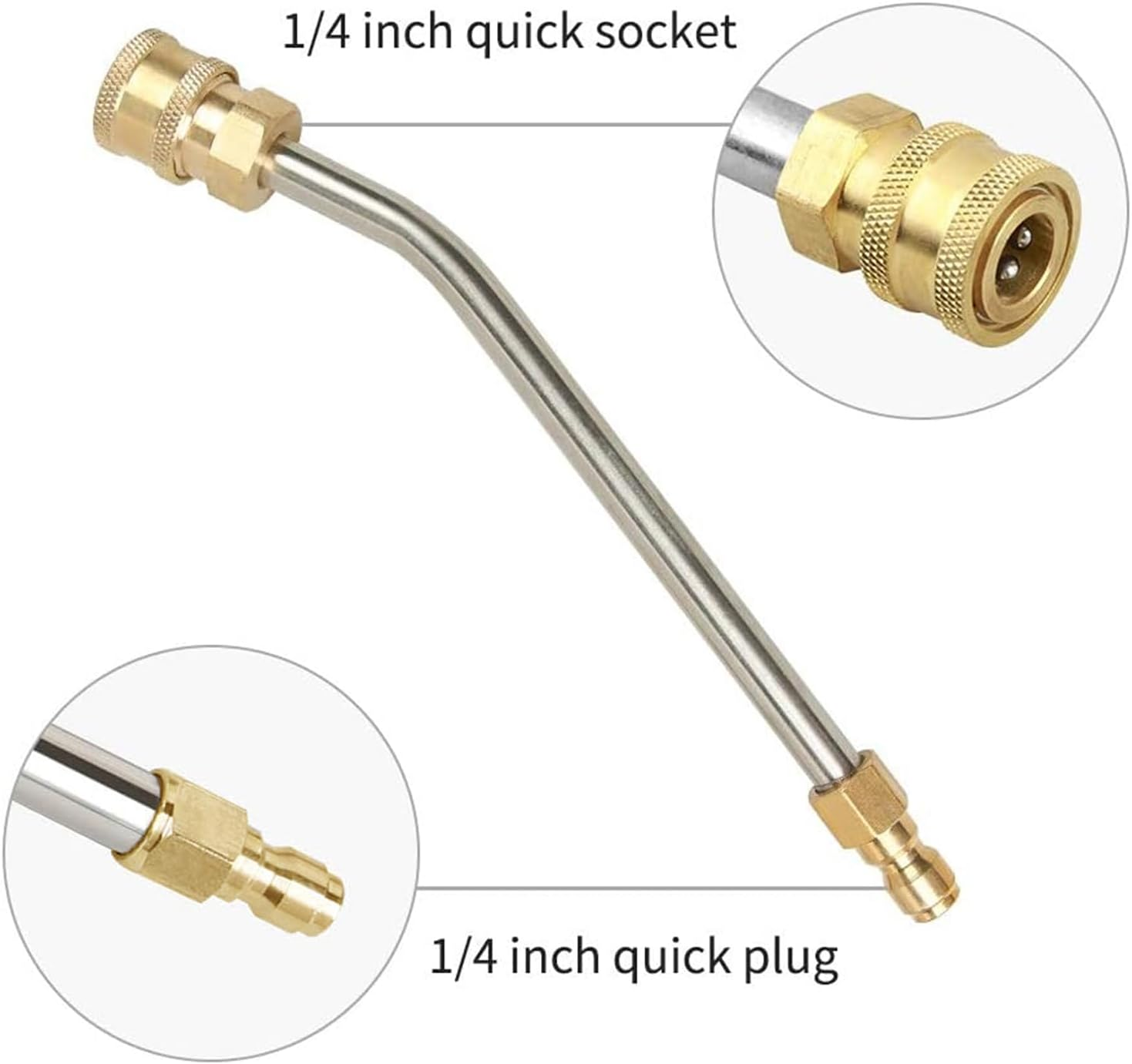

7 Inch Extension Wand, 30° Curved Rod, 1/4 Inch Quick Connect

Use this attachment to add a 30° angled rod to your quick coupler sprayer extension wands. Quick connect option allows you to change out nozzles easily, switching from Adjustable Con to Fan Nozzle on the fly.

Attach the above NPT ¼ quick couplers to your spray nozzles to quickly change your sprayer setup depending on the size of your equipment, or if you are spraying the outside or inside of certain types of booms.

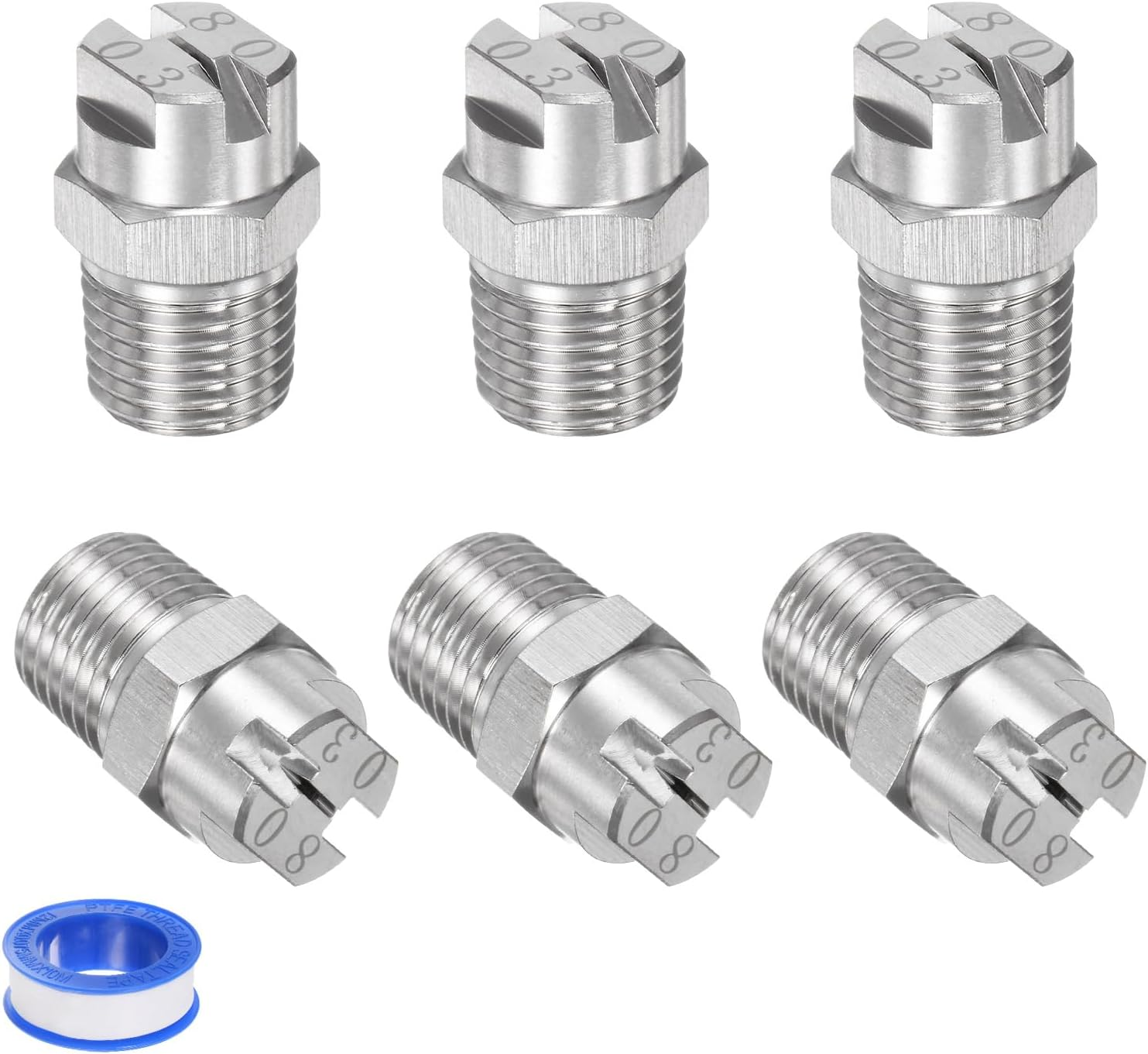

6 Pack of 1.1mm 80° Fan Nozzles .3 GPM

Fan Pattern spray nozzles. Great choice for modifying your sprayers or having backup nozzles. Sprays an 80° Fan Pattern that works great for larger equipment and surface areas.

Add to the above Quick Connect Coupler Female Plugs to create a quick coupling attachment. Excellent for switching between fan nozzle or adjustable cone nozzle depending on the size of Equipment.

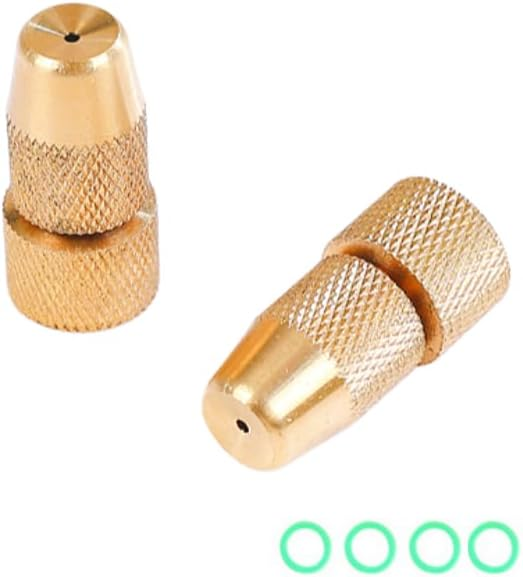

Aimela Brass Atomizing Nozzle, 2 Pack, Adjustable Mist & Stream Modes

These adjustable cone nozzles allow for a 4”-12” spray pattern and work great for small or large crane booms.

You can also unscrew the nozzle to allow a stream mode or unscrew completely for easy cleaning.

Add to the above Quick Coupler Male Plugs to create a quick coupling attachment. Excellent for switching between Fan Nozzle or adjustable cone nozzle depending on the size of Equipment.

"Fan Nozzles" work best for Large Equipment. Can be too large for corner style booms.

"Adjustable Cone Nozzles" work great for large or small boom sections.
